Vista View Full Map

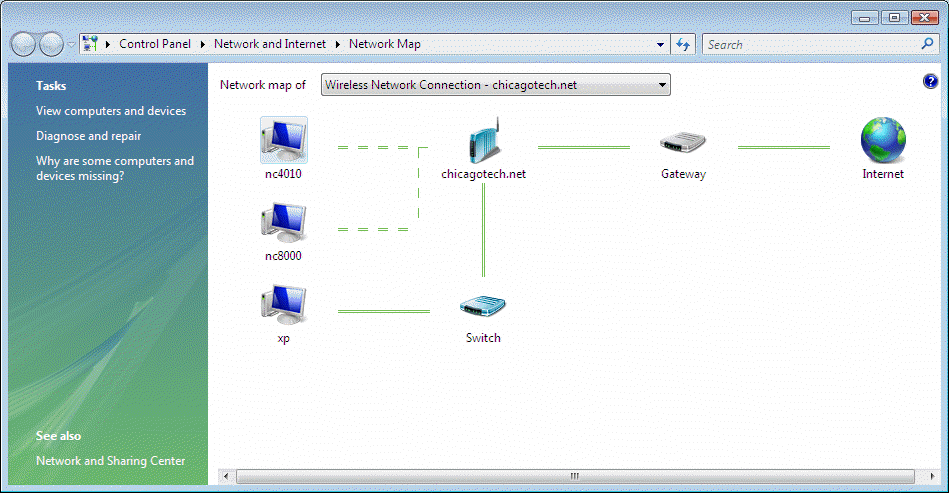

Vista View Full Map is a diagram (Figure 1) that shows the connections between network devices. Network Map uses a discovery protocol called Link-Layer Topology Discovery (LLTD) in order to query the other devices on the network to determine how the network is organized.

Note: 1. In the Figure 1, nc4010 and nc8000 are the wireless.

2. XP is wired computer.

3. If you have a wireless router connecting both wired and wireless,  the diagram shows a switch between the wired computer and wireless router even you don't have the separate switch (many warless routers are a router plus switch).

Figure 1.
